DDA Assist - Disability Handrail Fittings

For compliance with DDA, AS 1428.1 and BCA

The Interclamp® DDA Assist range has been especially designed for disability handrails to help compliance with AS 1428.1-2009, Design for Access and Mobility General Requirements for Access - New Building Work, the Building Code of Australia and other national standards requiring a smooth handrail. In order to give our customers more choice, a range of both internally expanding clamps and saddle type fittings is available, neither of which requires the use of welding, threading or specialist tools.

Our classic range of internally expanding fittings requires no riveting or drilling of tube, whereas the saddle-type fittings require less tube cutting and hence easier handrail alignment. No other special fittings are required, which enables full integration with both new Interclamp® systems and the refurbishment or upgrading of existing tubular structures to help meet the newer access specifications.

In order to meet the requirements of the above standards, the range forms flush joints with size C42 tube. Tube (and fittings where necessary) may be coated in AS or RAL colours to help meet contrasting colour requirements, including the SSA Industrial Safety Colour Code, AS 1318-1985. Steps and disabled access slopes may easily be accommodated, facilitating compliance with public access standards.

For C42 size internally expanding Assist fittings (as with type 150), tubes must be 42.4mm od x 3.2mm wall thickness eg. 1 1/4” medium weight to AS 1074-1989, Steel Tubes and Tubulars for Ordinary Service. All cut tube ends must be deburred and treated with Interclamp® Silver Galvanising Spray or other suitable protection. Optional O-rings may be fitted to each end of the expanding assist fittings to achieve the best finish.

Sort by
Display per page

720

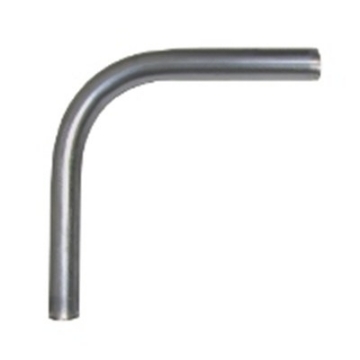

Interclamp 720 - Assist Handrail 90° Bend

721 - 180 Return Bend

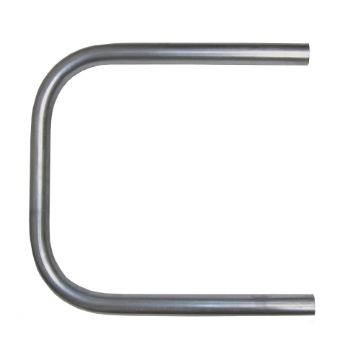

Interclamp 721 - Assist 180° Rail Return

725

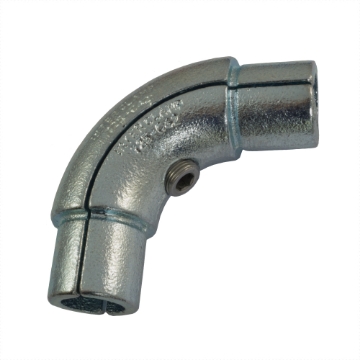

Interclamp 725 - Assist Expanding Elbow

728

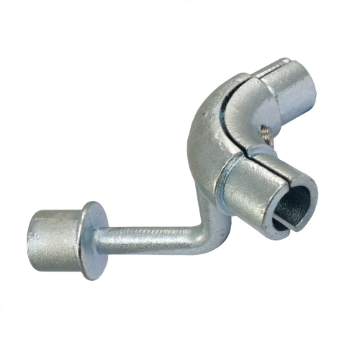

Interclamp 728 - Assist Expanding Internal Corner Bracket

729

Interclamp 729 - Assist Expanding External Corner Bracket

731

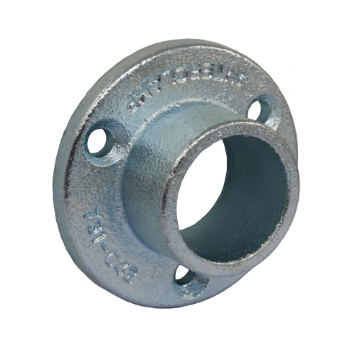

Interclamp 731 - Assist Wall Flange

745

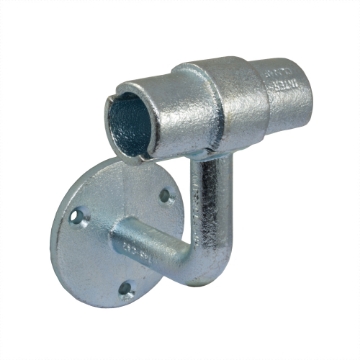

Interclamp 745 Assist Expanding Wall Bracket

746

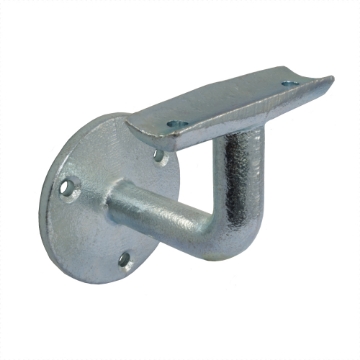

Interclamp 746 Assist Saddle Wall Bracket

747

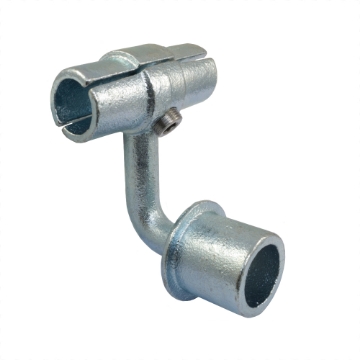

Interclamp 747 Assist Expanding Internal Swivel Bracket

748

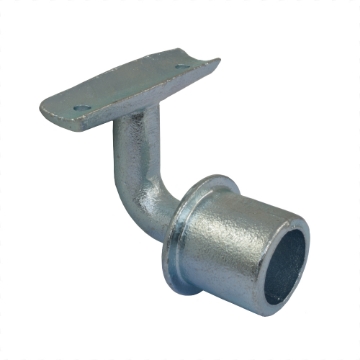

Interclamp 748 Assist Saddle Internal Swivel Bracket

750

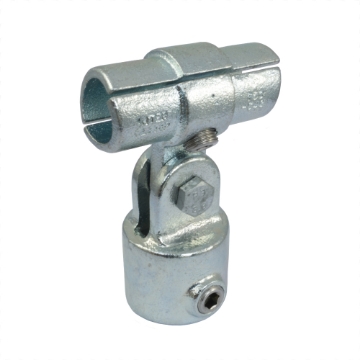

Interclamp 750 Assist Expanding Fitting

751

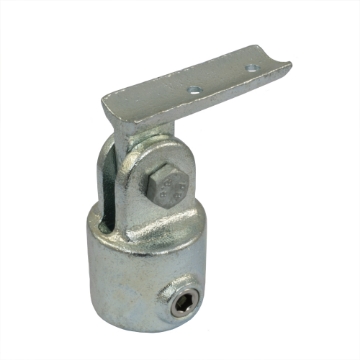

Interclamp 751 Assist Saddle Fitting

752

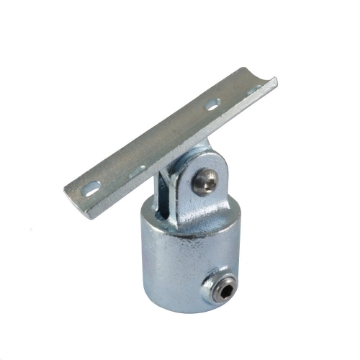

Interclamp 752 - DDA Assist Saddle Fitting

753

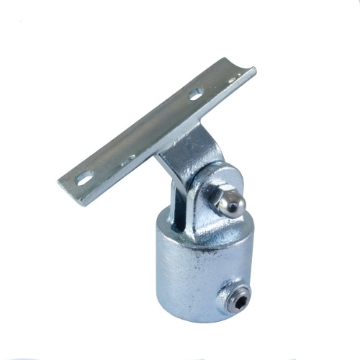

Interclamp 753 - DDA Assist Offset Saddle Fitting

764

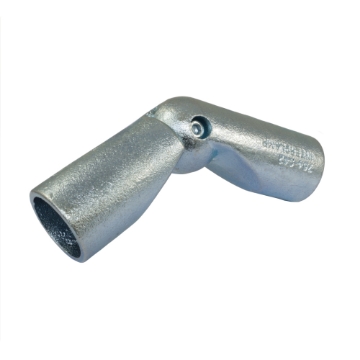

Interclamp 764 - Assist Inline Adjustable Knuckle*

797

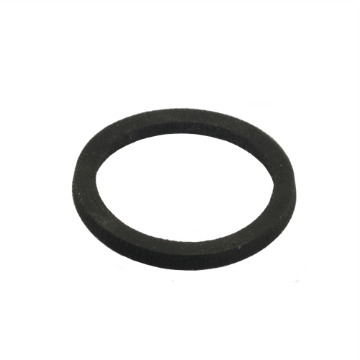

Interclamp 797 - Assist O-Ring (Optional)

798

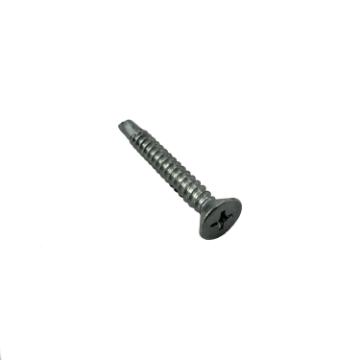

Interclamp 798 - Self Drilling Screw - For use with saddle type fittings

799

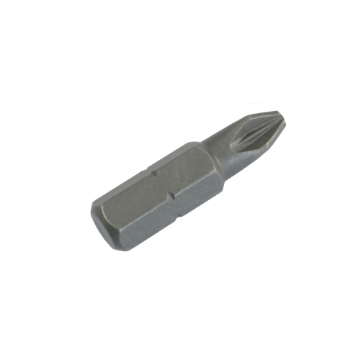

Interclamp 799 - PH2 Bit
