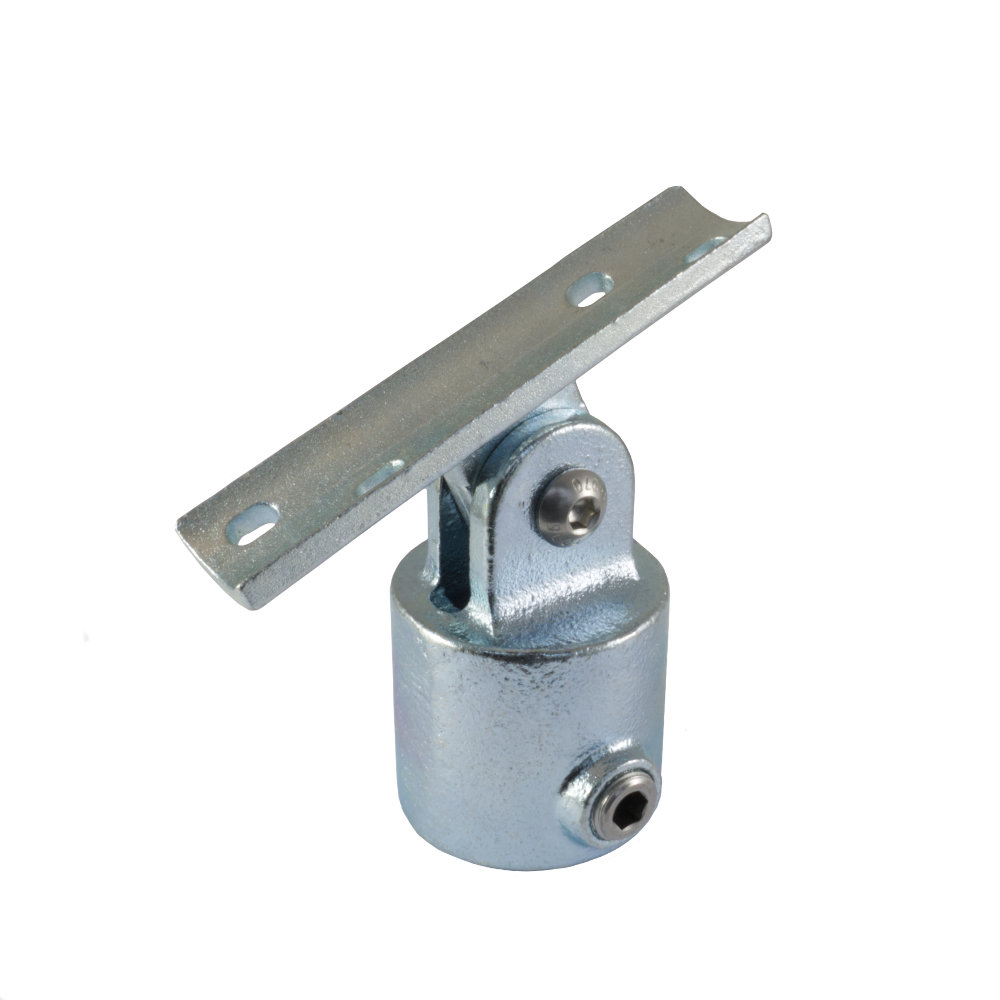

Interclamp 752 - DDA Assist Saddle Fitting

Designed to attach a freestanding handrail to an upright post on a variable angle.

The 752 Interclamp fitting is designed for intermediate support of horizontal galvanised handrail tubes where no joining of the tubes are required. They are also used when fitting the 724 Assist handrail end termination to the upright post.

Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted.

Product Data & Dimensions



Sizea (mm)b (mm)c (mm)Weight (Kg)Box Qty*
  C4213029270.7240
  D48 130 29  27  0.81436



Please Choose Required Size Below:

  • *
$0.00 incl GST
decrease increase
