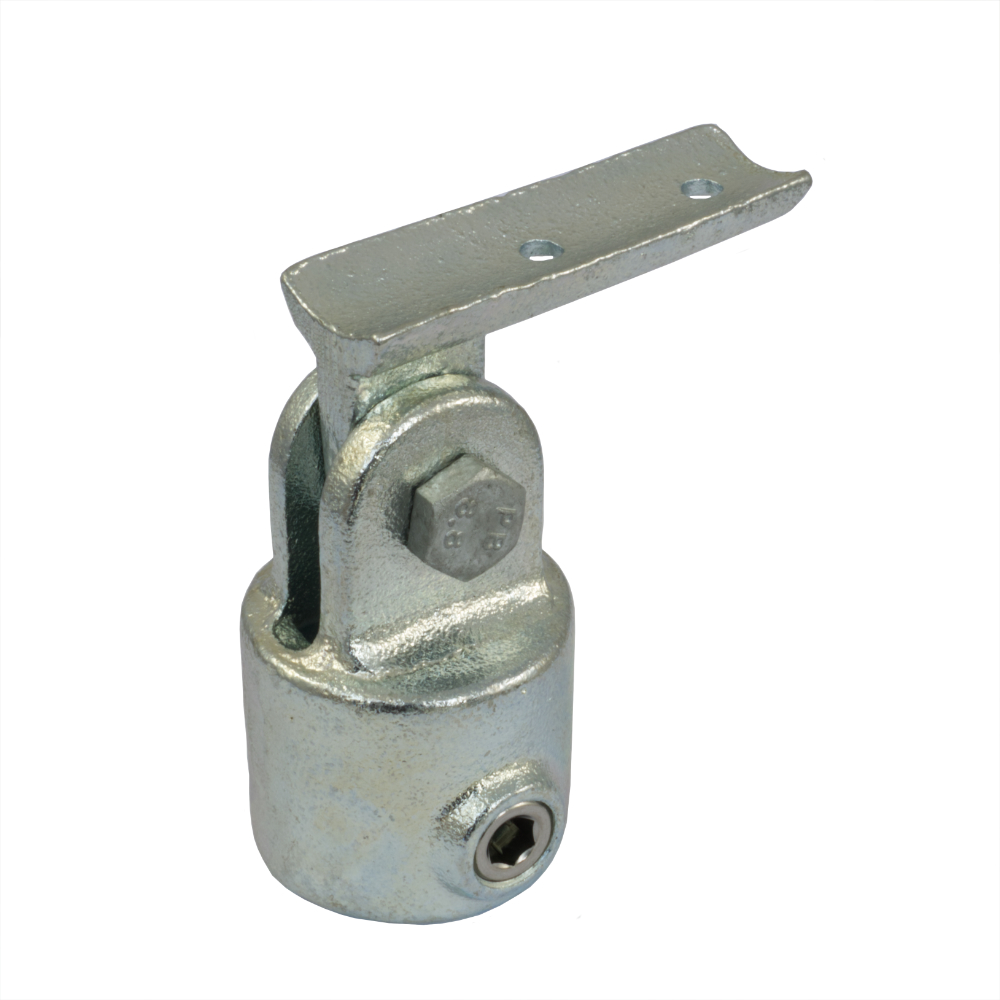

Interclamp 751 Assist Saddle Fitting

Designed to attach a freestanding handrail to an upright post on a variable angle. The 751 Interclamp Assist fitting comes complete with the 751M saddle, 173F female swivel, bolt and nut unassembled.

The 751 Interclamp fitting is designed for intermediate support of horizontal galvanised handrail tubes where no joining of the tubes are required. They are also used when fitting the 724 Assist handrail end termination to the upright post.

Although the saddles of rivet-on Assist fittings are primarily designed to fit snugly on C42 diameter tubes, they may also accommodate D48 tubes with a slight central gap when fitted. Please note, however, that for relevant UK applications, D48 size handrails do not meet the dimensional requirements of the Disability Discrimination Act (DDA) regulations and Building Regulations Part M:2004.

Product Data & Dimensions

Sizea (mm)b (mm)c (mm)Weight (Kg)Box Qty*
C428726310.60450
C42/D48---0.69550

Please Choose Required Size Below:

Availability: Please select required attribute(s)
  • *
$0.00 incl GST
decrease increase

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.
