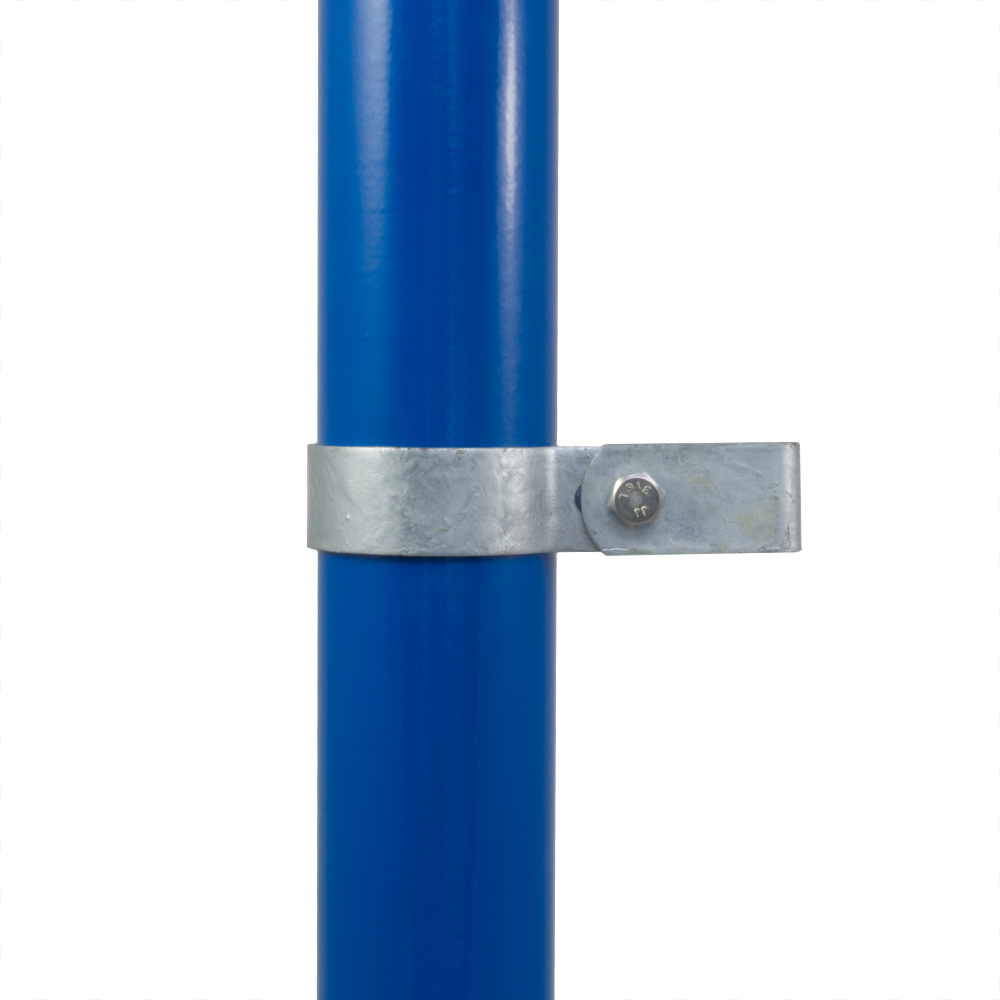

Interclamp 170 - Single Mesh Panel Clip

For attaching mesh panels to one side of tube. For double-sided clips, please refer to type 171. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.
Please note that bolts are BZP coated.

Designed to suit 8mm rod.



Product Data & Dimensions



Sizea (mm)b (mm)Weight (Kg)Box Qty*
  A27  50 - 64  23 - 38  0.065  300
  B34  54 - 64  28 - 38  0.069  250
  C42  60 - 70  34 - 44  0.076  200
  D48  62 - 72  34 - 44  0.082  180
  E60  70 - 80  45 - 55  0.084  150



Please Choose Required Size Below:

  • *
$0.00 incl GST
decrease increase

Five different size ranges of galvanized Interclamp handrail fittings are available as shown in the table, hence a suitable size can be selected for any particular application. Interclamps are easily identified by a type number of each design eg. 125 followed by a size code eg. D48, the latter part of which corresponds with the approximate outside diameter of the handrail tube to be used (48.3mm = 1 ½" nominal bore in this case). Hence a 90° elbow suitable for an 1 ½" nominal bore tube in this example would be denoted as a 125-D48.

Interclamps are designed for use with steel pipe, such as gas and water tube. If you are looking to use aluminium alloy or other tubes with our system, it should be ensured that the outside diameter matches one of those shown in the table below and that they are of a suitable structural strength.

Should you require further guidance on the correct choice of Interclamp size for your particular application or design load specification, please take advantage of our wealth of experience in the selection of steel tubes and clamps gained over many years. If your structure has to comply with a particular client, national or international standard, please specify this in your enquiry.

 SizeTube Nominal BoreTube Outside Diameter
A27¾"26.9 mm
B341"33.7 mm
C421 ¼"42.4 mm
D481 ½"48.3 mm
E602"60.3 mm

Interclamp tube clamp size guide

Image for illustrative purposes only, not drawn to scale.
